Take the guesswork out of installing Super-Vee Tremolo and Maverick bridge systems with this precision-milled routing template set. Built for accuracy and long-term shop durability, this template ensures clean, tight-fitting body routes for effortless installation and smooth bridge operation.

• Precision Laser cut: laser cut with exacting tolerances to guarantee exact post placement and clean cavity lines every time.

• Durable 1/4" MDF Material: Rigid, smooth-edged construction designed to withstand repeated use with pattern/flush-trim router bits without warping or edge wear.

• Clear Alignment Lines: Laser-etched centerlines and positioning guides allow quick, foolproof alignment on both flat-top and contoured body blanks.

• Complete Routing System: Features all necessary cutout cavities for top routing, post mounting, and spring/block clearances needed for Super-Vee and Maverick hardware setups.

Specifications & Details

• Thickness: 1/4" (6.35 mm)

• Material: High-Density MDF

• Compatibility: Super-Vee Tremolo System, Super-Vee Maverick Bridge System

Recommended Tools for Best Results

• Top-bearing flush-trim or pattern router bit (3/8" diameter with 1/2" cutter length recommended)

• Double-sided luthiers tape or carpet tape for secure hold during routing or screw template to area that will not be viewed once complete.

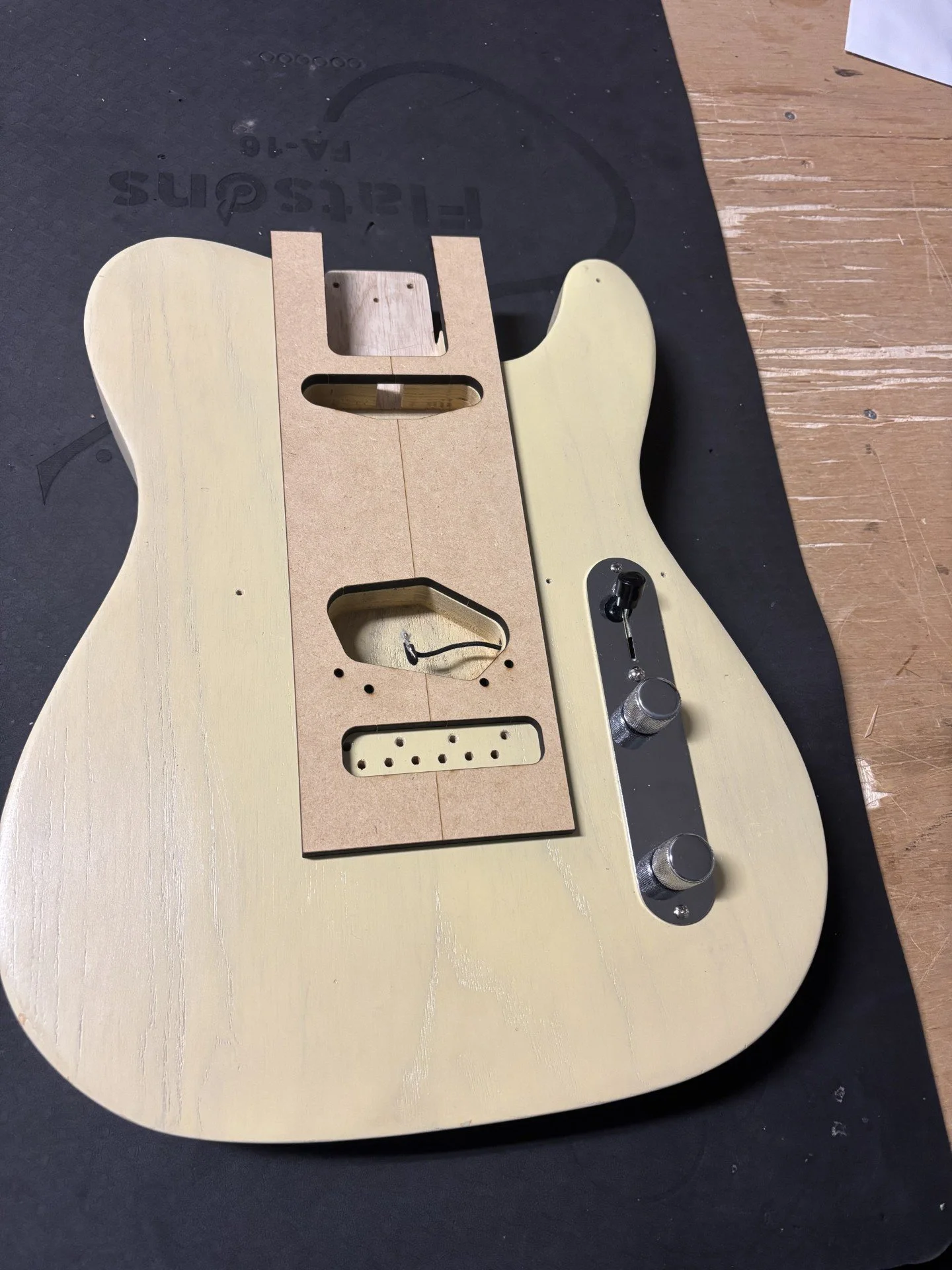

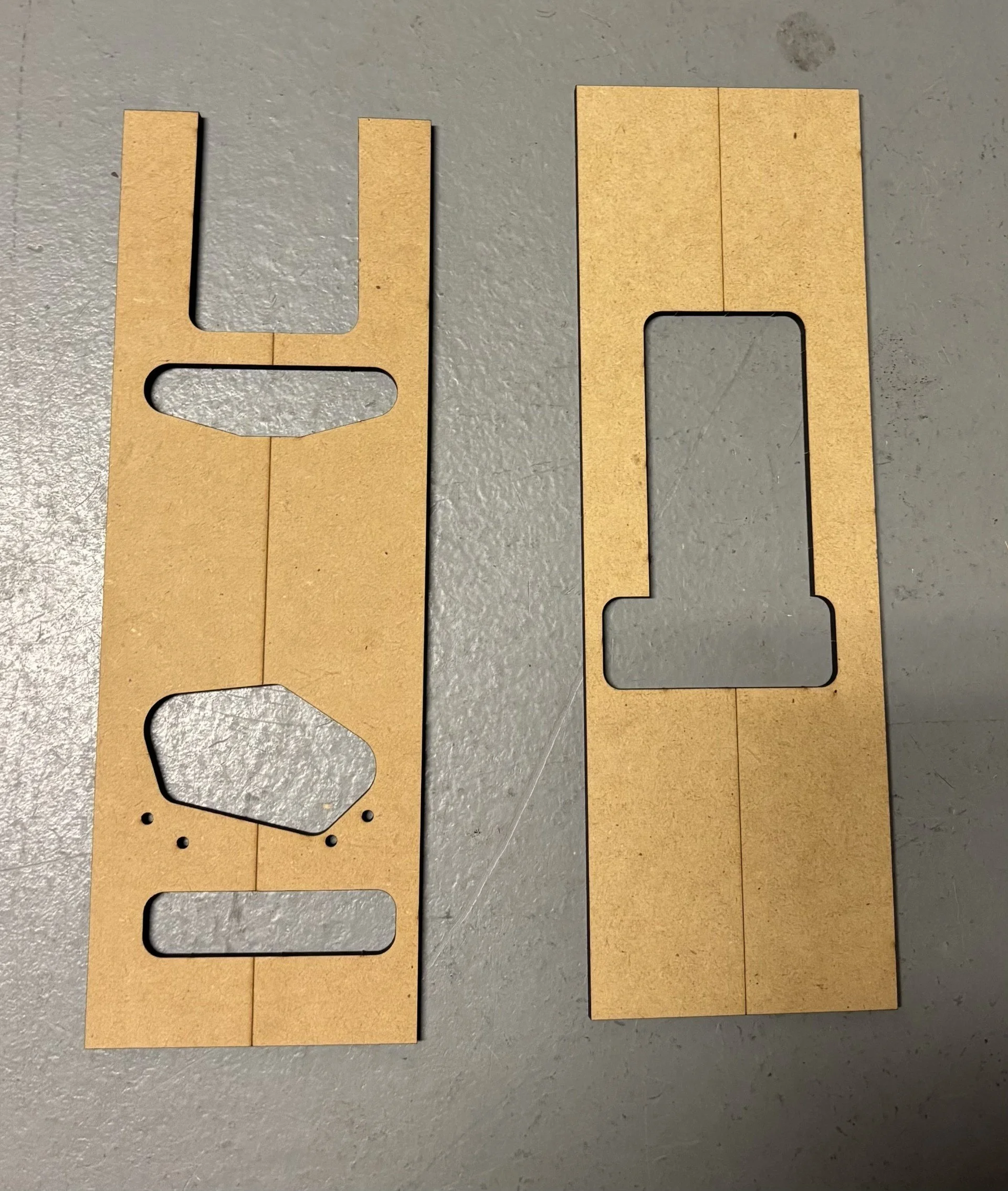

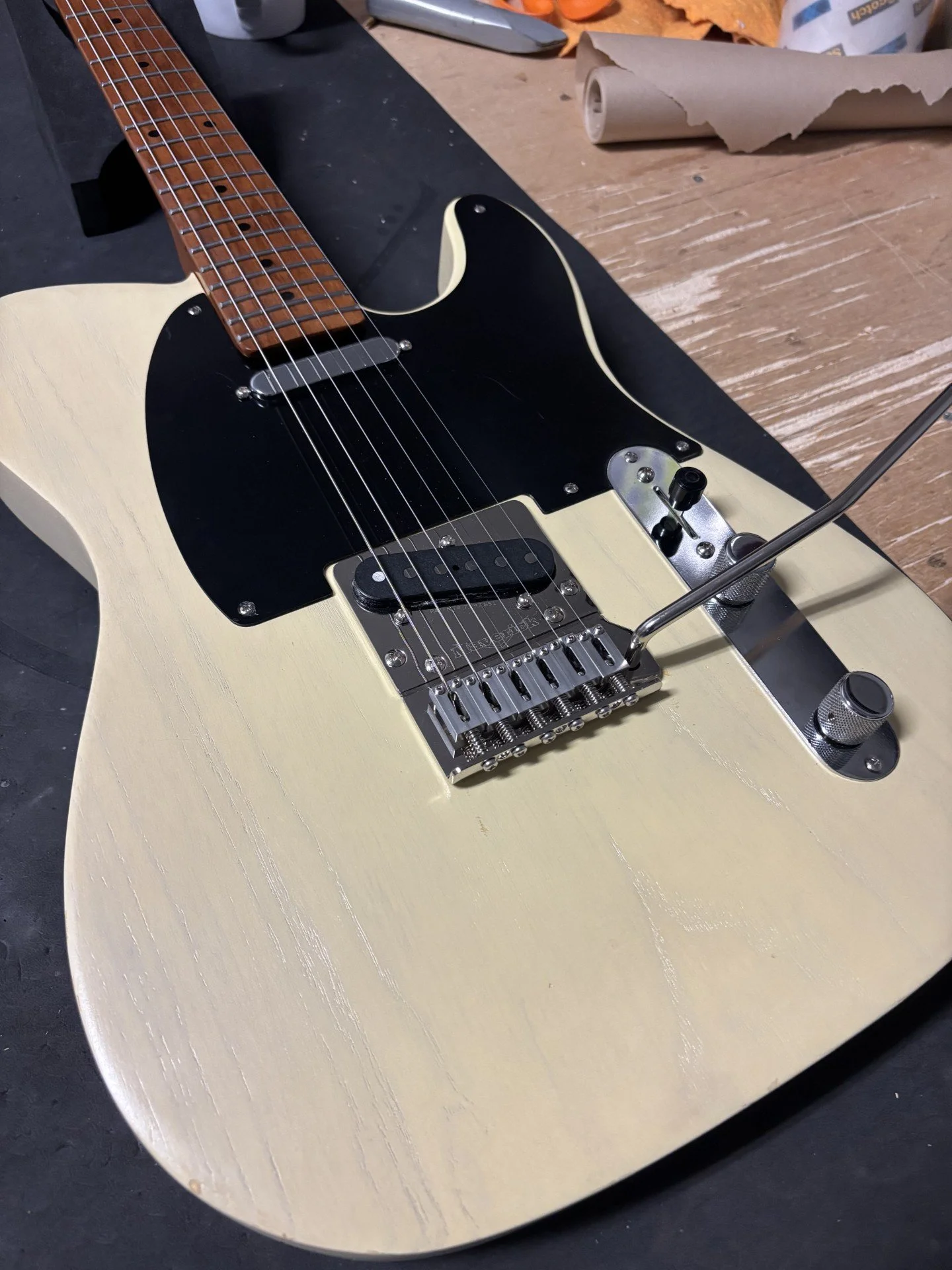

• Standard drill press or hand drill for pilot/post hole locator marks Includes two-part template as shown in picture. You can also see pictures of my favorite tele with a Super Vee Maverick tremolo.
